Figure 1: scanned surface of the 10 bog oak samples
Not all described tests were done at all
samples. Mainly, the samples with a good ability to produce pipe bowls were
tested. Especially at the determination of the age, restrictions of the quantity
of samples were necessary.
Methods and results
During stuffing and smoking a lot of changes within the wood of the
pipe-bowl are taking place. These changes have a strong influence on the ability
to use the wood for pipes and furthermore on the quality of smoking. Different
tests which describe the changes in the wood during the stuffing and the smoking
were chosen. The tests started with the identification of the age of the wood
and the wood density. The equilibrium moisture content, the water uptake and the
swelling are describing the chemical condition of the wood and the affinity to
water. The increased affinity to water is due to a changed amount of the degree
of crystallisation of the cellulose. During the degradation, the amount of
amorphous parts of cellulose could be increased, which makes it easier for
water-molecules to access the wood. Characteristics like swelling and shrinkage
are important for the stability of the bowl during stuffing and smoking. The
chemical analyses present the inorganic composition of the wood; i.e. the amount
of ions which were introduced during the buried period.
Determination of age with the
help of Carbon-14
The determination of age (sample number 1 to 4)
was done at the University of Vienna, Vienna Environmental Research Accelerator
(VERA), Prof. Wild (see tab. 1). The age varied between 1300 and 5000 years.
Table 1: Carbon-14 dating of the four samples (BC = before
Christ; AD = ano domini)
There is no strong relationship between
the scanned surfaces (Fig. 1) and the age (Tab. 1). The colour seems to be
dependent on parameters like the condition during burying.
The smoke ability
The smoke ability, which means the ability to use the raw material,
was classified by Mr. Prammer following the school grades; 1 = excellent; 5 =
insufficient (see Tab. 2).
Table 2: Smoke ability of the different samples
Ranking the samples according to their
intensity of colour, it’s obvious, that light-coloured samples are related to
bad smoking conditions (see Tab. 3).
Table 3: Smoke ability, ranked with school grades
The used reference – Bruyère – is
described as species with good characteristics
The wood density is one of the universal wood quality parameters. The wood
density is strongly related to various characteristics. For the sub fossil oak
it is also a measure of the degree of degradation. .
Wood density was determined as oven dry
density (wood density of completely dry wood) and as wood density at an
equilibrium moisture content at the standard climate (20°C, 65% relative
humidity resulting in approximately 12% moisture content).
The results of the oven dry density show
a strong variation between 0,62 und 0,86 g/cm³. Wagenführ and Scheiber (1985)
presented density values between 0,58 and 0,73 g/cm³. The reference (Bruyère)
had a density of 0,77 g/cm³ (see Fig. 2).

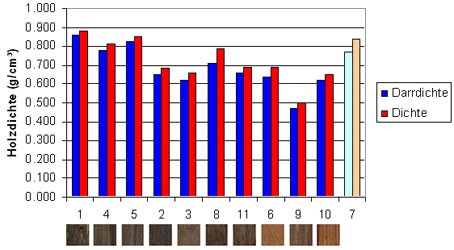

Figure 2: Oven dry density (blue) and wood density (at 12 %
moisture content; red) of the samples; sorted by the smoke ability. The sample 7
A strong relationship between density
and smoke ability is visible: A high wood density is necessary to produce high
quality pipe bowls (Fig. 3).

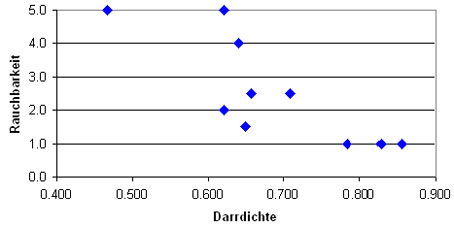

Figure 3: The relationship between smoke ability and oven
dry wood density (without sample 7).
Equilibrium moisture content
Storing wood under a given constant climate, the samples reach
given moisture content. The samples were stored under standard climate (20°C,
65% rel. humidity) for several weeks. Spruce wood reaches under such conditions
12% moisture content. Deviations can occur due to changes in the chemical
The measured values varied between 10,6 and 13,5% (see Fig. 4).
There is no relationship between this parameter and the usability.

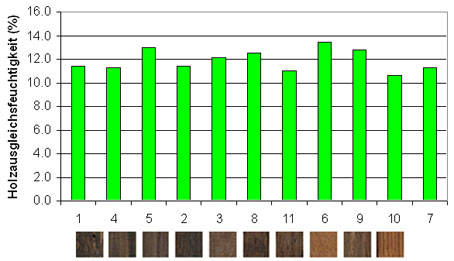

Figure 4: Equilibrium moisture content of the samples
(sorted by the smoke ability); 7 = Bruyère
the hygroscopic behaviour of wood, moisture from the air can heighten the
moisture content of the wood. Below the so called fibre saturation point (about
30% of moisture content; the cell walls are saturated with water, but there is
no liquid water in the holes of the cells) ongoing drying processes cause
shrinkage of the wood. If the wood gets moistened again, it swells in the same
relation like the shrinkage occured.
The three anatomical directions of the
wood differ in swelling and shrinking. In tangential direction it’s twice than
in radial direction. The proportion between longitudinal : radial : tangential
Due to the highest values, the tangential swelling coefficient
was chosen. Wagenführ und Scheiber (1985) reported about values of 6,9 to 14,2%.
Due to sometimes not perfectly orientated samples the volumetric swelling
coefficient was also calculated .
The values of the tangential swelling
varied between 3,8 and 7,4% (see Fig. 5), which is lower than described in
literature. These low values are caused by the general high variability of this
parameter, as well as by the fact that the samples were not perfectly oriented.
Bruyère is not growing in aligned directions like wood. Therefore a comparison
is not possible.
There is a weak tendency of high values
at samples with good smoke ability.
The results of the volumetric shrinkage
(Fig. 6) confirm the trends seen at the tangential swelling coefficient.
Basically you can see that samples with higher swelling coefficients are more
suitable for smoking.

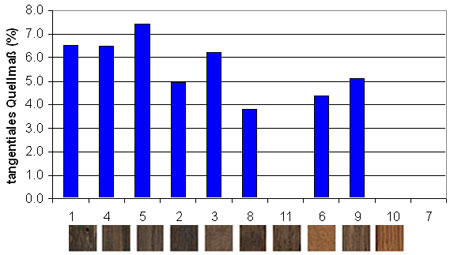

Figure 5: Tangential swelling of the samples (sorted by the
Reduced swelling coefficients are
usually a hint of a “modification” of the wood, which happens also at the
steaming of wood. Changes in the organic chemical composition (cellulose,
lignin, hemicellulose) reduce the swelling coefficient as well. There is a
strong relationship between density and swelling. That means, if density and
chemical composition is reduced – due to degradation of the wood – also the
swelling becomes lower.
The ability to absorb water is important for the bowl of a pipe.
During the smoking the wood has to absorb water from the tobacco. We tried to
simulate this process. Oven dry samples were stored above liquid water for 20
minutes (there was no contact to the water). The samples were weighted prior and
after the test and the water uptake was calculated.

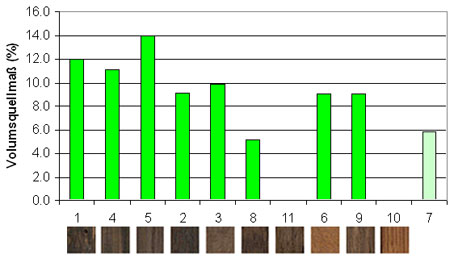

Figure 6: Volumetric swelling of the samples (sorted by the
smoke ability; 7 = Bruyère)

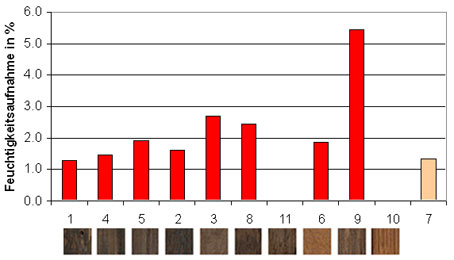

Figure 7: Absorption of water (sorted by the smoke ability;
7 = Bruyère)
Figure 8 shows, that there is a
relationship between water uptake (within 20 minutes) and suitability of the
wood to build pipe bowls. The best samples take up less water then the worst.
The amount of water absorbed by samples with the best smoking qualities is the
same like for Bruyère.
This parameter seems to be also a hint of the organic
chemical composition of the wood (degree of degradation).

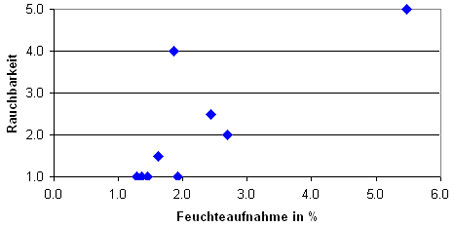

Figure 8: The relationship between the smoke ability and
absorption of water in 20 minutes (without the samples 7, 10, 11).
The amount of ash
The determination of the amount of ash:
One to two grams of dry
wood were getting to ash in an oven at 700°C. At the first part of the
oxidation, the pot was closed to ensure, that no ash is going to loos during the
intensive burning of the carbon. After one hour the pot was opened, and stood
inside the oven for three more hours. After cooling the mass loss was determined
(see also Fengel and Wegener 1989). At least two determinations per sample were

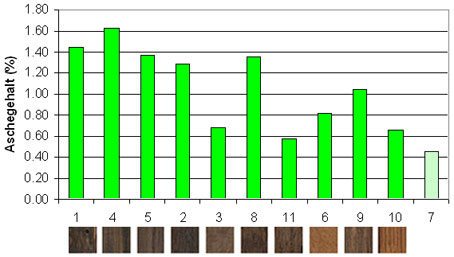

Figure 9: Amount of ash (sorted by the smoke ability; 7 =
When you measure the amount of ash you
can derive the amount of inorganic substances (mainly salts) within the wood.
Wagenführ and Scheiber (1985) mentioned an amount of 0,8% for sub fossil oak.
The determined values were between 0,5 and 1,6% (see Figure 9), which meets the
descriptions of literature.
The amount of ash in fresh oak wood is 0,2%
(Wagenführ and Scheiber, 1985). The higher values of the sub fossil oak are due
to inclusion of salts during the time of burying.

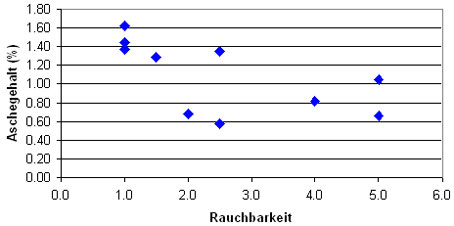

Figure 10: The relationship between the smoke ability and
the amount of ash (without the sample 7).
In the figures 9 and 10 it’s well
visible, that there is a strong relationship between smoke ability and amount of
ash. Samples with good smoke abilities had high amounts of ash. There is a
strong correlation between colour of the wood and suitability to build pipe
bowls. Due to these relationships it seems, that the reaction of iron and the
tanning agents of the wood is responsible for the dark colour of the wood.
Amount of inorganic elements
Determination of the amount of inorganic elements:
were dried for 48 hours at 40°C and 80 mbar in a vacuum oven. 500 to 700 mg of
the dried samples were used for the analyses.
A high pressure microwave
digestion was chosen, which was done with the agents: 0,5 ml 30%igem H2O2, 1ml
70%iger HClO4 and 6ml conc. HNO3. A program with different heating and cooling
phases was chosen. After 35 minutes of digestion and cooling, the liquid was
filtered and purified water was added up to 50 ml. The qualitative and
quantitative analyses were done with the help of a flame AAS (Atomic Absorption
Spectroscopy) and ICP-OES (Inductive Coupled Plasma Optical Emission
The following elements were determined:
Sodium, Potassium, Iron, Calcium, Magnesium, Zinc, Copper, Chrome,
Manganese, Nickel and Aluminium.

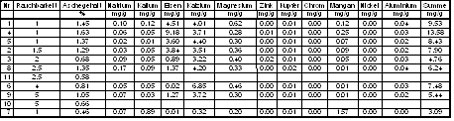

Table 4: Amount of ash and elements (sorted by the smoke
Table 4 presents, that just the elements
iron, potassium and magnesium show high values. Fengel and Wegener (1989)
described potassium and magnesium as the most frequent elements in wood. They
play an important role during wood formation.
So, the values of iron are the
most interesting ones for sub fossil oak.

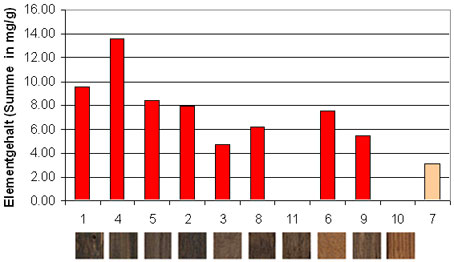

Figure 11: Amount of elements (sum) (sorted by the smoke
ability; 7 = Bruyère)
The sum of elements shows interesting
relationships to the smoke ability (see Fig. 11). A good suitability to produce
bowls is connected with high amounts of elements. The sum of elements correlated
well with the amount of ash. Therefore it can be assumed, that all important
elements have been determined. Just silicates could have been included at some
of the samples.
The sum of elements is lower than the amount of ash. This
fact is probably based on the missing determination of anions. Metals can be
found as oxides in the ash, which is not the case in the natural condition of
Primarily iron, potassium and magnesium
play a role for the sum of elements (see Table 4). Because of the high impact of
potassium and magnesium on the formation of wood, iron was presented alone
The reaction of iron with tanning agents
of the wood is responsible for the dark colouration of the sub fossil oak wood.
This reaction is also described for fresh oak wood (Fengel and Wegener, 1989).
So, the colour (dark brown, dark grey up
to black) is strongly influenced by the amount of iron in the surrounding
environment, where the trunks were buried over hundreds of years. The dark
colour can be modified by degradation (especially microbial) of the wood –
getting brighter again. To split and quantify these processes in the meaning of
colour is not possible due to state of knowledge.
Figures 12 and 13 present the strong
relationship between the amounts of iron and the smoke ability. The darker wood
samples have higher amounts of iron and are better to produce pipe bowls. That’s
also a confirmation of the high importance of the reaction between iron and the
tanning agents on the colour of the wood.

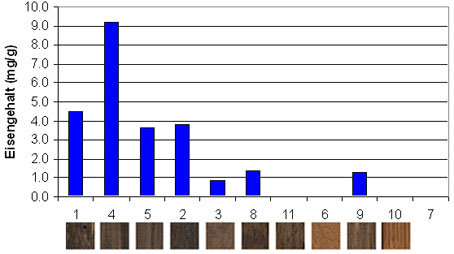

Figure 12: Amount of iron (sorted by the smoke ability; 7 =

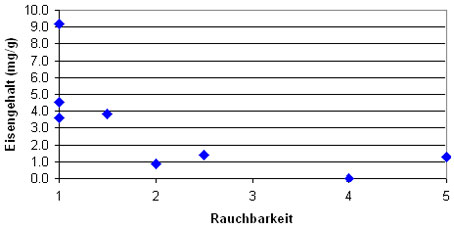

Figure 13: The relationship between the smoke ability and
the amount of iron (without sample7).
Abstract and conclusions
Under wet conditions wood can be preserved thousands of years. Sub
fossil oaks can be found in the gravel of rivers as well as in bogs. Under
anaerobic conditions just a slow microbial degradation of wood takes place
(Rowell und Barbour 1990). If these conditions do not always exist, a
degradation of the wood caused by fungi and mold can occur. These processes can
also take place at standing trees, prior the burial processes.
So, the quality of the sub fossil oak
wood can vary greatly. This project was established to find possibilities to
determine the suitability of different origins of sub fossil oak to produce
bowls of pipes in advance.
The age of these buried oak trunks
varies greatly. The radiocarbon dating presented an age of 1300 to 5000 years.
This enormous difference in age does not influence the suitability and the
colour. It’s not possible to estimate the age with the help of the colour.
The most important parameter, which is
connected to the suitability to produce pipe bowls, is the degree of degradation
and the chemical properties.
parameters confirmed this statement:
presents a strong relationship to the smoke ability. The darker coloured samples
(dark grey up to black) are better applicable. The dark colour is linked to the
reaction of iron and tanning agents, which is mainly described for oak wood.
density has to be high to produce good bowls. The highest value was 880kg/m³,
which is higher than cited in literature (615 – 760 kg/m³). The wood density of
oak wood varies between 430 and 960 kg/m³ (Wagenführ and Scheiber 1985). A high
wood density of the living oak tree and good preservation can be attributed to
the high density of the sub fossil oak.
Swelling and water uptake are linked
to the condition of the sub fossil wood. These parameters can be altered
especially by changes of the organic-chemical composition of the wood. Wood with
good qualities to produce bowls has high coefficients of swelling and reduced
potential of water uptake. The highest values of tangential swelling of sub
fossil oak wood are comparable to the values of fresh oak wood.
is a strong relationship between the amount of ash and the smoke ability. A good
suitability is linked with a high amount of ash.
of elements – especially iron – is high in samples of good suitability. As these
samples are dark coloured, it might be linked with the reaction of iron and
Concluding, the best qualities to
produce pipe bowls have to be of high density and dark colour.
Fengel, D., Wegener, G. 1989: Wood.
Chemistry, Ultrastructure, Reactions. Walter de Gruyter, Berlin.
Rowell, R.M., Barbour, R.J. 1990:
Archaeological Wood. Properties, Chemistry and Preservation. Advances in
Chemistry Series: 225, American Chemical Society, Washington D.C.
Wagenführ, R. Scheiber, C. 1985:
Holzatlas. VEB Fachbuchverlag Leipzig.
Wien im December 2008
© copyrigth 2009 - Prammer Josef –
All rights reserved
Copyright © 2009 by TECON GmbH
friendly support of Josef Prammer
